Tamiya THW 1060 Waterproof Brushed ESC

Tamiya THW 1060 Waterproof Brushed ESC

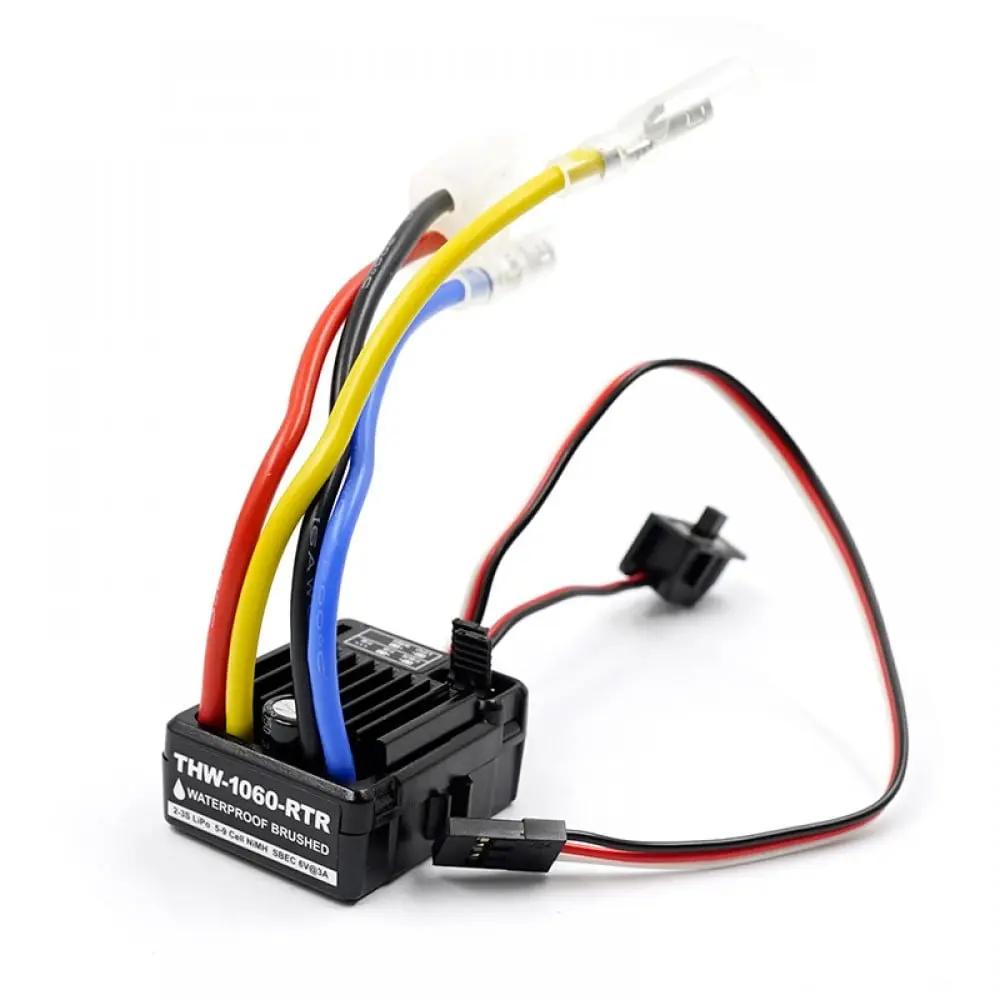

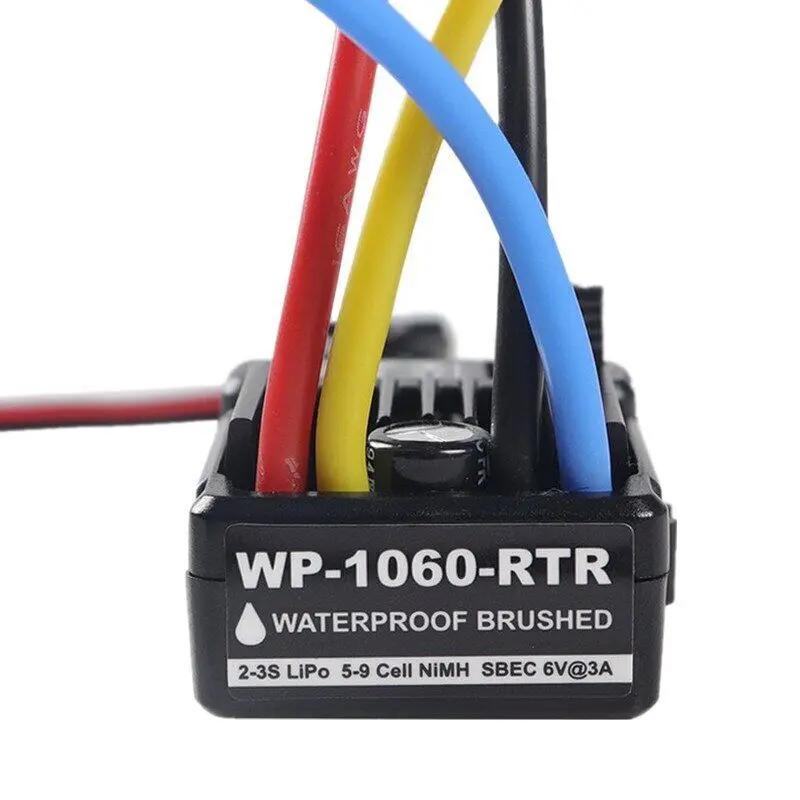

Tamiya THW 1060 Waterproof Brushed Electronic Speed Controller.

For: Tamiya Car Kit
Material: Plastic
Color: Black
Compatible with brushed Motors
Waterproof and dust-proof design
Small size with built-in capacitor module.
Automatic throttle range calibration, easy to use.
Multiple protections: Low voltage cut-off protection for Lipo or NiMH Battery / Over-heat protection / Throttle signal loss protection.
Easily programmed with the jumpers

Specification:
Cont, / Burst Current: Forward 60A / 360A Backward 30A / 180A
Input: 2-3S Lipo, 5-9 Cells Nimh
Car Applicable: 1/10 on-road, off-road, crawler
Motor Limit: 2S Lipo or 5-6 cells Nimh 540 or 550 size motor ≥ 8T or RPM<45000 @7.2V
Motor Limit: 3S Lipo or 7-9 cells Nimh 540 or 550 size motor ≥13T or RPM<30000 @7.2V
Built-in BEC: 3A/6V (Switch mode BEC)
Dimension & Weight: 36x30x18mm, 40g
