Tomix N Easement Wide PC Curve Track 12-1/2" Radius, 22.5°

This is a wide curve cant introduction rail with a radius of 317mm, a curve angle of 22.5°, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced into the canted rail by gradually adding cant from a flat without cant.

Features

• Ballast and sleepers are painted for a beautiful appearance
• PC sleepers are expressed
• Rails are joined together with nails for easy and reliable connection
• Connection compatible with conventional TOMIX rails
• Handrails, side walls, and fences (sold separately) can be attached to the side of the rail
• Attach the separately sold single wire pier base to the bottom to support single wire piers . Can be connected to the outside and used as a double-track rail
• When used as a double-track rail, attach the coupling for the wide rail cant section (coupling for wide rail/slab rail to the flat introduction section) to the bottom surface to support double-track elevated piers
• Power is supplied by attaching a wide rail/slab rail feeder to the bottom surface (slab rail feeder can also be attached, conventional feeder cannot be attached)
• Wide rail/slab rail sensor can be attached by user additional machining (one-touch with slab rail sensor) (Mounted sensors cannot be installed)
• Compatible with various overhead line pole installations
• Cant inclination angle gradually changes from 0 degrees to approximately 4 degrees with a curve angle of 22.5 degrees

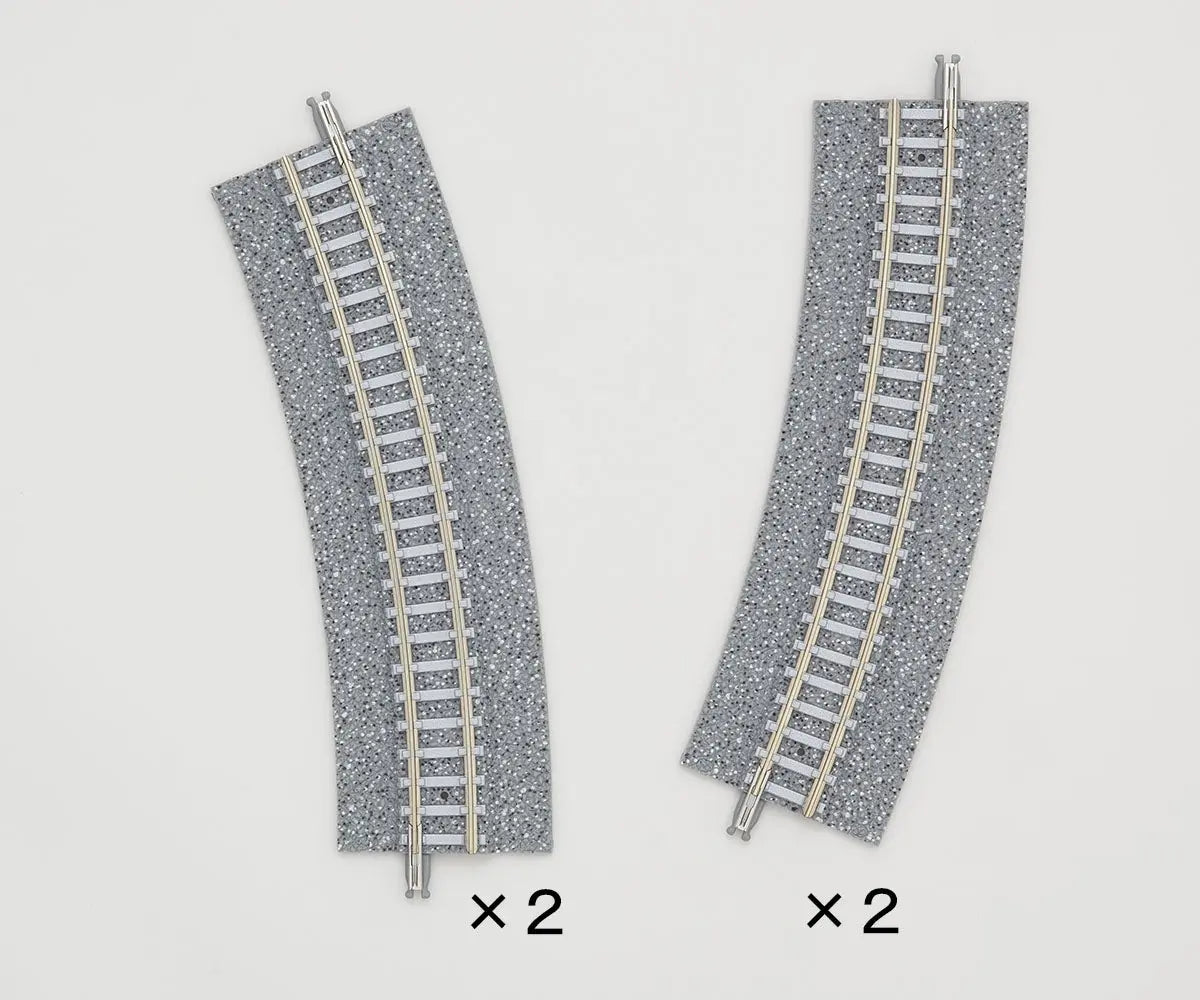

• CR gradually inclines cant while curving to the right, and left 2 sets of 2 each of CL that gradually cants while curving.

• Wide PC approach rail CR317-22.5-WP(F)
• Wide PC approach rail CL317-22.5-WP(F)
• Runner parts: Wide rail joint
